Description

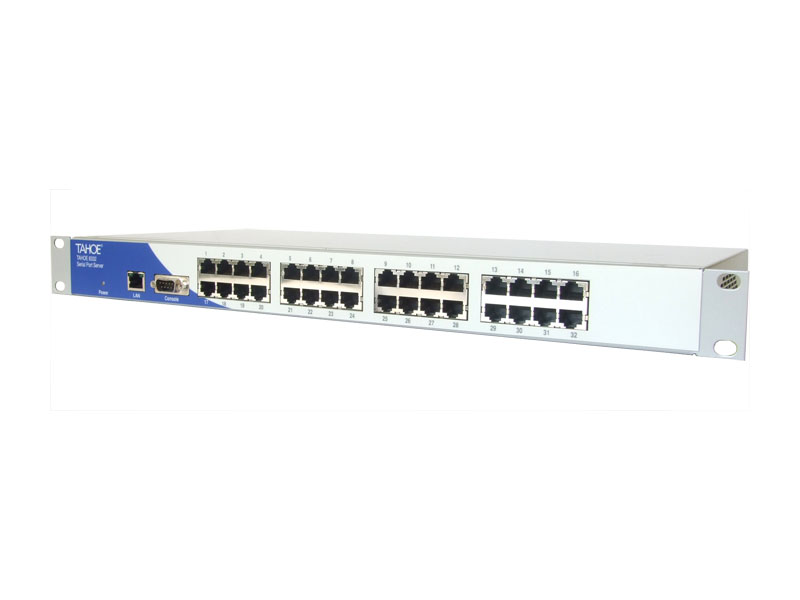

Tahoe 8332 is a serial port server with 32 RS-232 connectors and a shared Ethernet port. A larger version of the Tahoe 8316 model.

The user connects to the server via telnet or SSH, selects a port and gains access to the console of the connected device: a switch, router, server or controller.

Users

Each port can be assigned to a separate user. This is useful when the equipment in one rack belongs to different departments or customers.

Several hardware and software watchdogs monitor the device, from basic processor functions to network communication. The metal enclosure is designed for years of continuous operation.

Technical data

Features	32 independent RS-232 ports up to 300 kbps per port with simultaneous use of all ports 1U high, 19" rack mountable WWW, telnet, ssh SNMP and RS-232 access
RS-232 interface	RJ-45 connector, 300 kbps max.
LAN interface	Ethernet 10/100Base-T, AutoMDI/MDIX
Dimensions	440 mm (width) x 43 mm (height, 1U) x 210 mm (depth)
Power supply	100-240V/50-60Hz
