Description

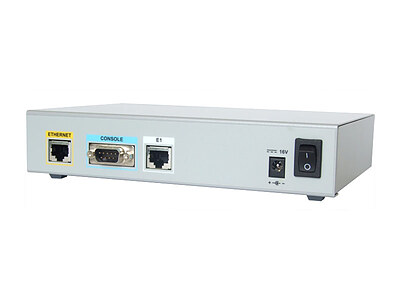

Tahoe 284 connects two LANs over an E1 link, also when only some of the timeslots are available.

It works as a transparent bridge and is a cheaper alternative to a router where management over a TCP/IP network and traffic filtering are not needed. It is configured via the serial console or from the LCD display and keypad.

Timeslots

The G.703 link works in framed or unframed mode. In framed mode any combination of timeslots can be selected, and the data rate ranges from 64 to 1984 kbps depending on their number. In unframed mode the full 2048 kbps is available.

Technical data

Throughput	64-2048 kbps
WAN interface	G.703 framed or unframed balanced 120 ohm HDB3 coding CRC4 support transmission using any combination of timeslots
LAN interface	Ethernet 10/100 Base-T 802.1q VLAN support
Features	management using built-in LCD and keyboard management using RS232 serial console manual or automatic 10/100 Base-T link negotiation G.703 link state monitoring WAN and LAN activity LEDs test loopbacks inside temperature measurement
Processor	Freescale PowerPC 50 MHz
Memory	8MB SDRAM
G.703 port range	up to 2000m (-43 dB sensitivity)
WAN protocol	HDLC
Dimensions	200 mm (width) x 130 mm (depth) x 45 mm (height)
Power supply	15V/400mA (100-240V, 50-60Hz power supply included)
