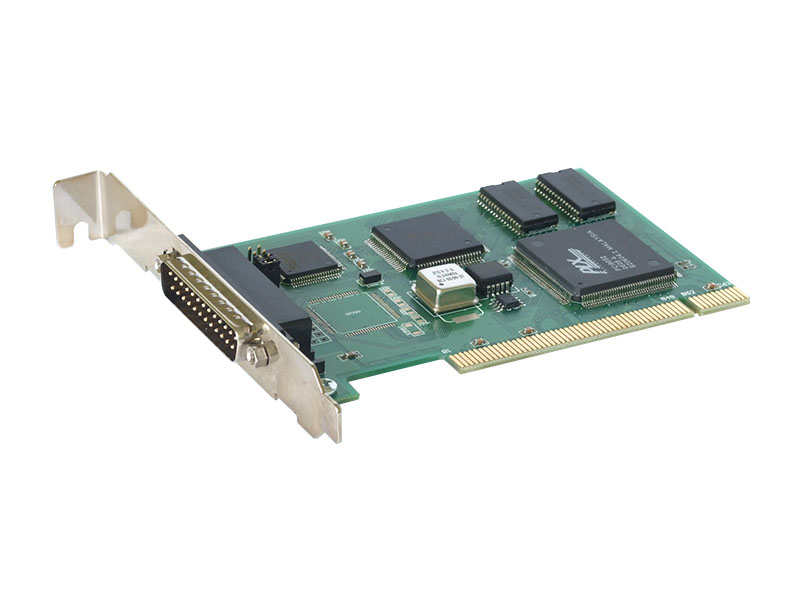

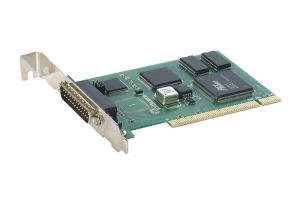

Tahoe 931 - synchronous V.35 PCI card

Tahoe 931
Single-port PCI V.35 card

Description

Single-port PCI V.35 card

Tahoe 931 card is equipped with one V.35 interface capable of transferring data at speeds up to 5 Mbps.

Built-in hardware HDLC controller fully takes care of the serial communication without any significant load added to the server's CPU.

Linux and FreeBSD drivers are available, supporting Frame relay, synchronous PPP and HDLC.

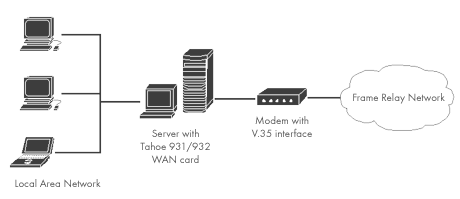

t93x_application

Drivers and installation instructions are available here.

Technical data

Controller	HD64570
Data buffer	256 kB
Throughput	up to 5 Mbps (full duplex)
WAN protocols	Cisco^® HDLC, PPP, Frame Relay, FRF.12 (fragmentation)
V.35 port	DB25, cable terminated with 34-pin Winchester (ISO-2539) connector available separately
